• Stainless Steel version - Fully air operated
• 2 ball piston design provides uniform positive displacement
• Extremely durable pump with long life packing
• Specially designed piston seals do not come into contact with material pumped.
• Hence, very long life as it can handle highly problematic fluids like Isocyanates which crystallizes on piston rods upon contact with moisture in air and rupture seals.

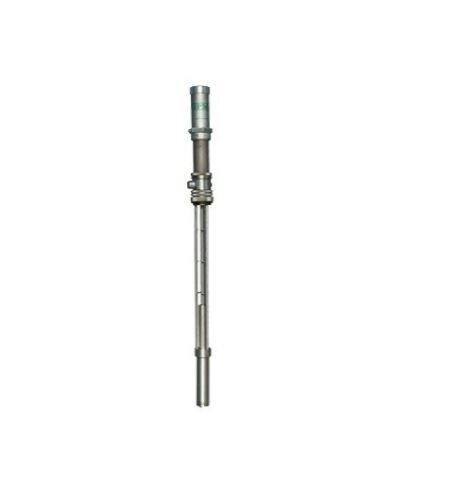

IP-02 (2:1 ratio)

IPM’s IP-02 series of pumps are specially designed for use with difficult to handle materials.

The immersed lower pump, tie tubes, and sealing bung bushing allow quick drum change without exposing the system to contamination and moisture.

Features

• Fully air operated


• 2 ball piston design provides uniform positive displacement


• Extremely durable pump with long life packing


• Specially designed piston seals do not come into contact with material pumped. Hence, a longer life span as it is able to handle highly problematic fluids like Isocyanates which crystallizes on piston rods upon contact with moisture in air and rupture seals.

Typical Applications

• Foam chemical supply


• Spray gun supply


• Dispensing valve supply


• Cleaning chemical supply


• Fluid transfer

Typical Fluids Handled

• Solvent based paints


• Water based paints (SST models)


• Solvents


• Cleaning chemical supply


• Chemicals


• Catalysts


• Isocyanates


• Adhesives


• Resins


• Polyurethanes


• Polyureas

Model Number

810201 (Carbon Steel)

810203 (Stainless Steel)

Technical Information

Fluid Ratio : 2:1

Max Output Flow Int : 4 gpm (15.2 lpm)

Max Output Flow Cont : 2.5 gpm (9.5 lpm)

Max Output Pressure : 360 psi (24.8 bar)

Max Air Input Pressure : 180 psi (12.4 bar)

Air Inlet Port : 1/4 npt(f)

Fluid Outlet Port : 3/4 npt(f)

Rod Piston Packings : PTFE

Other Seals : PTFE /PEEK

Rod Cylinder : Stainless Steel

Other Wetted Parts : Stainless Steel

Weight : 15.4 lbs. (7Kg.)
